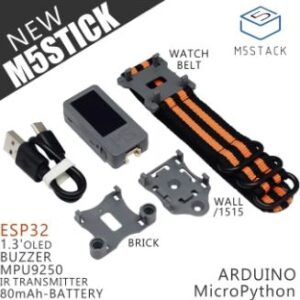

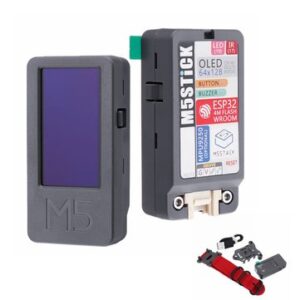

M5Stick is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board.

What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.

M5stickC is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your benefit in every step of the developing process.

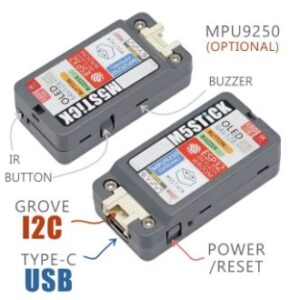

Product Features

• 5V DC power supply
• USB Type-C
• ESP32-based
• 4 MByte Flash + 520K RAM
• 9-Axis IMU MPU9250(only gray type)
• Red LED
• Buzzer
• IR transmitter
• Microphone
• 1 Buttons, OLED(1.3 inch), 1 Reset
• 2.4G Antenna: Proant 440
• 80 mAh Lipo Battery
• Extendable Socket
• Grove Port
• Wearable & Wall mounted
• Development Platform UIFlow, MicroPython, Arduino

ESP32 Features

• 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
• Integrated 520 KB SRAM
• Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
• Integrated dual mode Bluetooth (classic and BLE)
• Hall sensor
• 10x capactive touch interface
• 32 kHz crystal oscillator
• PWM/timer input/output available on every GPIO pin
• SDIO master/salve 50MHz
• SD-card interface support
